Description
A drop-in stock appearing turbo that is anything but stock. Available in two sizes, the stage 1 is perfectly paired with stock injectors, while the larger stage 2 gives you the increased airflow larger injectors demand. BD Ballistic billet compressor wheels and our exclusive turbine profile results in increased airflow, reduced backpressure and increased turbine flow compared to the competition.
Installation Instructions
Installation Instructions
Installation Instructions
This Part Fits:
Installation Instructions
Installation Instructions
Installation Instructions
- Billet 11-blade 63.4mm inducer/ 88.25mm exducer compressor wheel with 91.3mm extended tips
- BD technology keeps exhaust vanes in an efficient zone for improved turbine performance
- 10-Blade turbine wheel with taller vanes and larger 66.45mm exducer / 72.5mm inducer
- Full blade compressor wheel amplifies the 6.0L turbo noise with aftermarket air box
- Hardware included to ensure all three mounting locations are used
- Compatible with all tuning such as H&S, Bullydog, SCT and others
- Compressor housing anti-surge design is better than others
- Out Performs Powermax Turbos Even With Stock Injectors
- Performs best with performance 50hp-90hp injectors
- 10 Blade Turbine Wheel With Taller Vanes
- Outperforms the Garrett Powermax turbo
- Direct drop-in replacement turbo
- Perfect Performance Replacement
- Stage 2 performance up to 500hp
- Drops In Stock Location

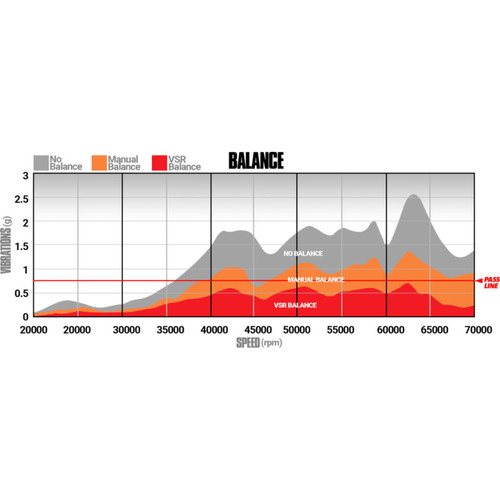

- VSR high speed balanced
- Stock appearance
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2004-2005 | Ford | E-350 Club Wagon | Chateau |
| 2004-2005 | Ford | E-350 Club Wagon | XL |
| 2004-2005 | Ford | E-350 Club Wagon | XLT |
| 2004-2007 | Ford | E-350 Super Duty | Base |
| 2006 | Ford | E-350 Super Duty | Chateau |
| 2006-2007 | Ford | E-350 Super Duty | XL |
| 2006-2007 | Ford | E-350 Super Duty | XLT |
| 2003-2005 | Ford | Excursion | Eddie Bauer |
| 2003-2005 | Ford | Excursion | Limited |
| 2004-2005 | Ford | Excursion | XLS |
| 2003-2005 | Ford | Excursion | XLT |
| 2004-2007 | Ford | F-250 Super Duty | Harley-Davidson Edition |
| 2004-2007 | Ford | F-250 Super Duty | King Ranch |
| 2003-2007 | Ford | F-250 Super Duty | Lariat |
| 2003-2007 | Ford | F-250 Super Duty | XL |
| 2003-2007 | Ford | F-250 Super Duty | XLT |
| 2004-2007 | Ford | F-350 Super Duty | Harley-Davidson Edition |
| 2003-2007 | Ford | F-350 Super Duty | King Ranch |
| 2003-2007 | Ford | F-350 Super Duty | Lariat |
| 2003-2007 | Ford | F-350 Super Duty | XL |
| 2003-2007 | Ford | F-350 Super Duty | XLT |
