Description

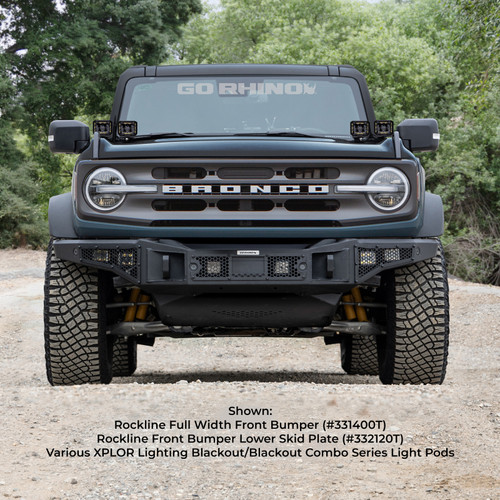

Part of Go Rhino's famous Bumper family of products. Rockline Winch Ready Front Full Width Bumper for Bronco with signature hex mesh LED protective cover for use with either an industry standard 20" double row LED bar or up to 4 standard 3" cube lights. Rockline Bumpers come with a Limited Lifetime warranty on materials and construction and a 5 year warranty on the Textured Black finish.
Installation Instructions
This Part Fits:
Installation Instructions

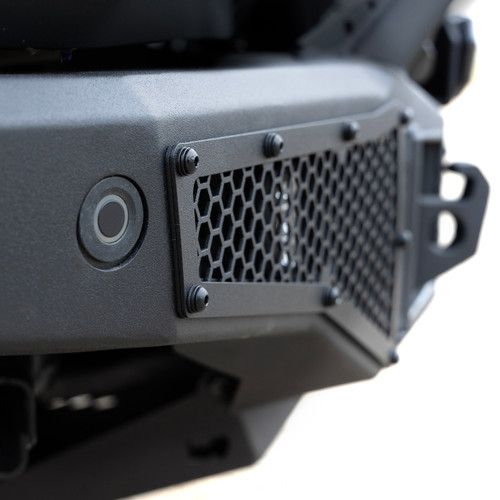

- Signature hex mesh cover can be used with or with out lights to finish the overall look or simply protect the LED's
- Industry standard winch mounting slots, for up to 12,000 pound capacity winch cut directly into the top surface
- Finished welded assembly is zinc plated then top coated with Go Rhino signature black textured powder coat

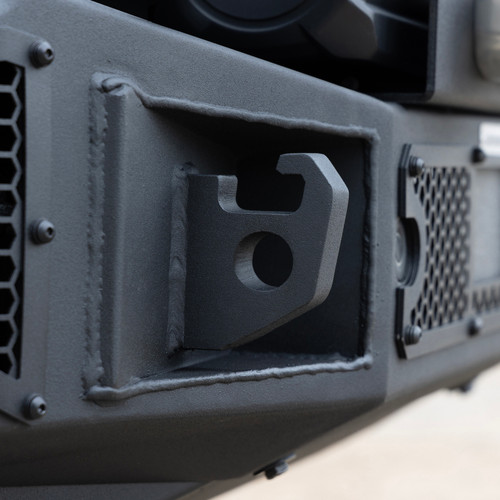

- Fully welded 1" thick dual function patented rhino hooks with shackle mount for up to 7/8" D-Ring pin
- Rockline Bumper is not rated to be used with vehicle tow bars or with towing equipment of any kind
- Grade 8 mounting fasteners coated in GEOMET Black for superior strength and corrosion resistance
- CNC laser cut and formed 3/16" thick steel fully welded hand finished seams
- Allows most 20" LED Doule Row Lights on Broncos W/O Adaptive Cruise Control

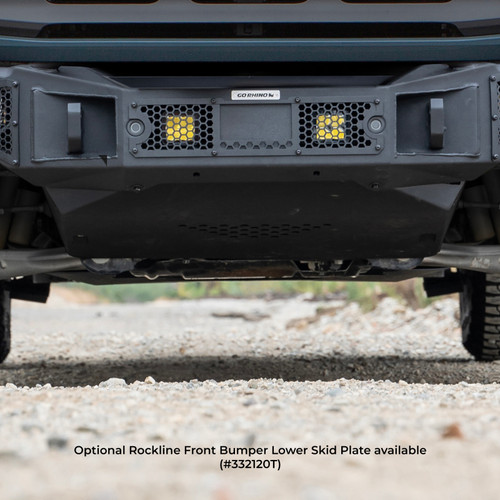

- Optional Lower Steel Skid Plate available, sold separately part # 332120T
- Allows two 3x3 or 4x3 LED Lights on Broncos W/ Adaptive Cruise Control
- Optional Fairlead Mount available, sold separately part # 332000T
- Use of Winch will partially block Camera View
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2021-2025 | Ford | Bronco | Badlands |
| 2021-2023,2025 | Ford | Bronco | Base |
| 2021-2025 | Ford | Bronco | Big Bend |
| 2021-2024 | Ford | Bronco | Black Diamond |
| 2024 | Ford | Bronco | Everglades |
| 2024-2025 | Ford | Bronco | Heritage Edition |
| 2024 | Ford | Bronco | Heritage Limited Edition |
| 2021-2025 | Ford | Bronco | Outer Banks |
| 2025 | Ford | Bronco | Stroppe Edition |
| 2021-2024 | Ford | Bronco | Wildtrak |
