Description
ICON’s 7” Suspension System for the 08-10 Super Duty yields enough lift to clear 37” tires while providing excellent ride characteristics across a wide variety of terrain on and off-road. Each component of this suspension system has been specifically engineered to work in union with other ICON parts to extract maximum performance out of the vehicle. Our Stage 5 System is comprised of 7” lift dual rate coil springs, fabricated radius arm drop mounts with brushed stainless badges, track bar drop bracket, bump stop extensions, sway bar links, a forged pitman arm, brake line brackets, rear 5" lift progressive rate leaf springs w/ U-bolts, and 2.5 Aluminum Series piggyback reservoir front & rear shocks. 2.5" reservoir shocks ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included in this stage for those desiring an easy way to tune the ride externally.
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
This Part Fits:
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions

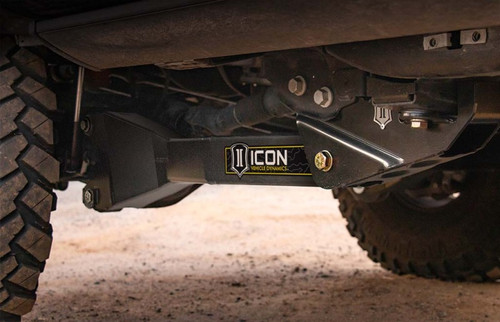

- Fabricated radius arms with drop brackets offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
- Shock absorbers feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- ICON engineered dual rate coil springs with match tuned 2.5 Series reservoir shocks w/ CDCV
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Rear progressive design leaf pack for smooth compliant ride
- Correctly positioned steering and track bar components
- No drive shaft modifications needed
- Decreased body roll
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2009-2010 | Ford | F-250 Super Duty | Cabela's |
| 2008-2009 | Ford | F-250 Super Duty | FX4 |
| 2008-2010 | Ford | F-250 Super Duty | Harley-Davidson Edition |
| 2008-2010 | Ford | F-250 Super Duty | King Ranch |
| 2008-2010 | Ford | F-250 Super Duty | Lariat |
| 2008-2010 | Ford | F-250 Super Duty | XL |
| 2008-2010 | Ford | F-250 Super Duty | XLT |
| 2009-2010 | Ford | F-350 Super Duty | Cabela's |
| 2008-2009 | Ford | F-350 Super Duty | FX4 |
| 2008-2010 | Ford | F-350 Super Duty | Harley-Davidson Edition |
| 2008-2010 | Ford | F-350 Super Duty | King Ranch |
| 2008-2010 | Ford | F-350 Super Duty | Lariat |
| 2008-2010 | Ford | F-350 Super Duty | XL |
| 2008-2010 | Ford | F-350 Super Duty | XLT |
