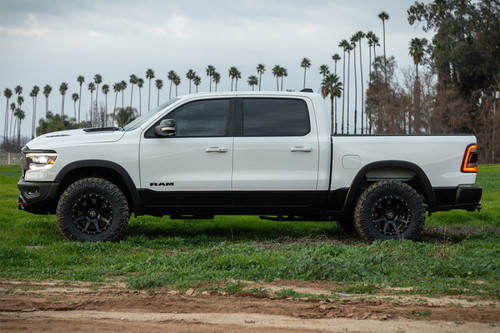

ICON 2019+ Ram 1500 2/4WD .75-2.5in Stage 4 Suspension System w/Tubular Uca - K213104T

ICON Vehicle Dynamics Dodge Ram 1500 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 4 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-1.5” of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s tubular steel upper control arms with Delta Joints are included for additional strength and improved suspension geometry for more predictable handling. ICON 2.5 Aluminum Series piggyback reservoir rear shocks paired with 1.5" lift, dual rate rear coil springs balance the performance of the truck from front to rear. The ICON Vehicle Dynamics 2019-UP Ram 1500 Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions

• Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
• Rear 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• 1.5" lift, dual rate rear coil springs offer incredible ride quality and increased suspension performance
• Adjustable coilovers from 0-1.5" of lift height allow for fitment of larger and more aggressive tires
• ICON 2.5 Series shocks feature vehicle specific tune for superior performance and ride quality
• ICON upper control arms improve suspension geometry for predictable handling
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• Corrosion resistant CAD plated coilover shock bodies with 7/8? shafts
• FK rod end bearings for extended longevity and minimal deflection
• 6061 Aircraft grade aluminum CNC machined components
• Shocks are fully rebuildable and revalvable
• Fits 2WD & 4WD applications

This Part Fits:

Year	Make	Model	Submodel
2019-2022	Ram	1500	Big Horn
2019-2022	Ram	1500	HFE
2019-2022	Ram	1500	Laramie
2019-2021	Ram	1500	Laramie Longhorn
2019-2022	Ram	1500	Limited
2021-2022	Ram	1500	Limited Longhorn
2019-2022	Ram	1500	Lone Star
2021	Ram	1500	Longhorn
2019-2022	Ram	1500	Rebel
2020-2021	Ram	1500	Special Service
2019-2022	Ram	1500	Tradesman
2021	Ram	1500	TRX
