Description

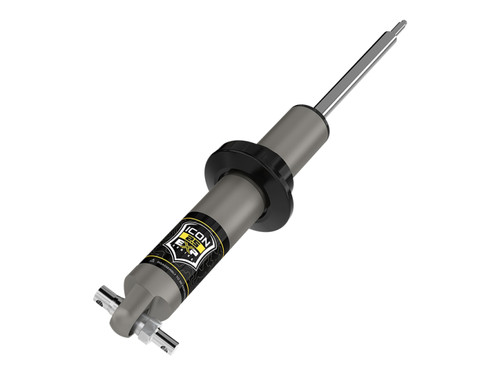

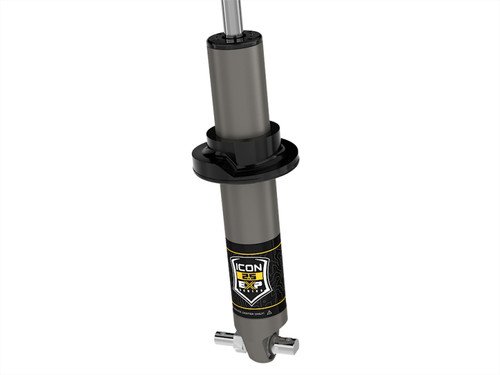

EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the Bronco in conjunction with their stock coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON.
Installation Instructions
This Part Fits:
Installation Instructions
- One-piece, impact extruded, hard anodized aluminum cylinder offer excellent corrosion resistance and consistent finish
- Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shaft
- Adjustable ride heights from 1.375-3” of front lift over stock with the use of snap ring
- Vehicle specific design for 2021-2023 Ford Bronco with HOSS 1.0 Suspension Package
- PTFE lined spherical bearing for extended longevity and minimal deflection
- CNC machined 6061 aluminum components with a black anodized finish
- 100% Bolt-on - no cutting or welding necessary for installation
- Vehicle specific tuned for superior shock damping and control
- 2.5 Aluminum Series Shock with Internal Reservoir
- High strength alloy CNC machined lower bar pin
- Utilizes factory coil and coil hardware
- Fully rebuildable and re-tunable
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2021-2023 | Ford | Bronco | Base |
| 2021-2023 | Ford | Bronco | Big Bend |
| 2021-2023 | Ford | Bronco | Black Diamond |
| 2021-2023 | Ford | Bronco | Outer Banks |
