Description

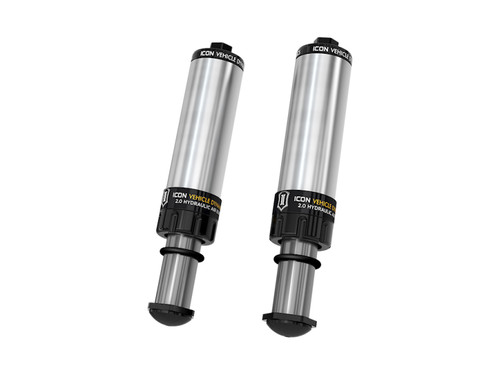

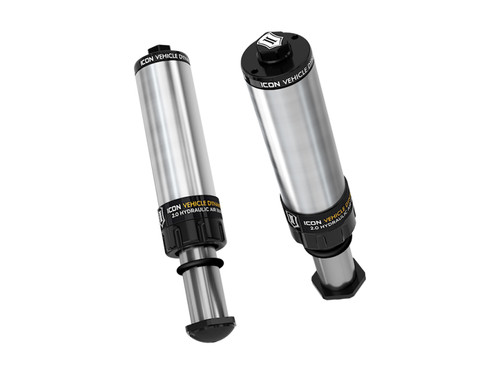

While the factory rear bump stops do a satisfactory job of absorbing impacts on a street driven truck, ICON found that there was much room for improvement during spirited driving in rough, off-road terrain. The ICON Vehicle Dynamics 2022-2025 Toyota Tundra Rear Hydraulic Bump Stop System was designed to take the off-road capability of the truck to new levels by significantly improving the bottom-out control of the rear suspension and reducing rear end kick. Like all ICON hydraulic bumps stops, these feature both velocity and position sensitive technology which means that as the shaft speed increases and moves through the travel, the force increases exponentially to provide excellent bottoming resistance that won’t negatively affect articulation.
Installation Instructions
This Part Fits:
Installation Instructions
- Position and velocity sensitive technology exponentially increases bottom-out resistance
- Direct bolt-in to OEM bump stop location makes for an easy and straightforward install
- 2.5” travel bump stop reduces rear end ‘kick’ and improves overall performance
- Vehicle specific bump stop tune to provide smooth engagement and best ride quality
- Fully reversible to factory configuration with no bed cutting required
- Multi stage CAD plated body for maximum corrosion resistance
- Heavy duty 1 ¼” CNC machined nitro steel shaft
- Double sealed high pressure Schrader valve
- Replaceable noise reducing striker pad
- Fully serviceable
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2022-2025 | Toyota | Tundra | 1794 Edition |
| 2022-2025 | Toyota | Tundra | Capstone |
| 2022-2025 | Toyota | Tundra | Limited |
| 2022-2025 | Toyota | Tundra | Platinum |
| 2022-2025 | Toyota | Tundra | SR |
| 2022-2025 | Toyota | Tundra | SR5 |
| 2022-2024 | Toyota | Tundra | TRD Pro |
