Description

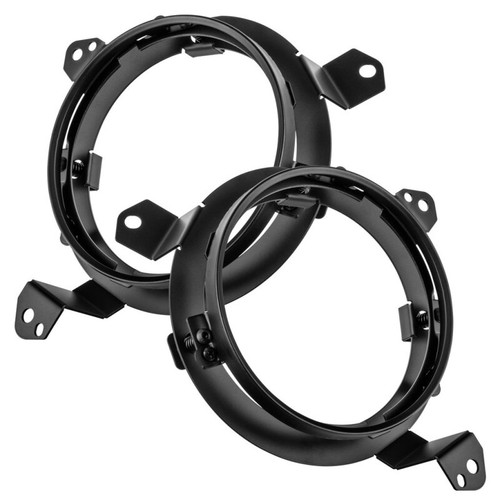

Complete Package for adding High-Performance 7" LED Headlights to your Wrangler JL/Gladiator JT without any fabrication or cutting your factory wiring. This complete Plug-&-Play kit also features Vertical and Horizontal headlight adjustment so you can put the light on the road (where you need it) and not blind oncoming traffic. The Ultimate 7" LED replacement headlight option for the Wrangler JL/Gladiator JT. This rugged solid-state LED design is perfect for the Jeep owner looking for high-quality lighting for better night time visibility without overpaying. Installation is very easy with the included JL/JT-specific "Plug and Play" connectors. You can even choose optional colored Halos for even more customization! Note: DRL wire cannot be used as a power source - Tapping into Park Lights will give manual control over LED accessory during daytime driving - LED accessory will turn on automatically in night mode when switch is set to AUTO - For full automatic control over the LED accessory use fuse F52 in the engine compartment fuse panel.
This Part Fits:
- Brighter/ More Even Light- by moving the heat load of the resistors off the PCB we are able to increase the number of LEDs on the circuit board without thermal issues.
- Improvements in brightness and reliability by adding a constant current LED driver to the main circuit board inside of the lamp to control the LED halos.
- Increased Reliability- By conditioning the power going into the LEDs this prevents degradation which can shorten the overall lifespan of the product.
- LED chips upgraded from a Cree LED to a Phillips Luxeon ZES chip.They deliver a very high efficacy 130LM/W ratio while having lower thermal output.
- Wider Input Voltage Range- The new SMD Halos can operate on a very wide voltage range from 12V-24V so that voltage spikes can not damage the LEDs.
- Current Draw: 2.50 Amps @ 12V DC / 1.30 Amps @ 24V DC
- Die-Cast Housing with Corrosion Resistant Coating
- High Beam Lumens: 3600 Lumens/4800 Raw Lumens
- Premium Performance Phillips Luxeon ZES LEDs
- Low Beam Lumens: 2200 Lumens/3600 Raw Lumens
- Color Temperature: 6000K (Cool White Color)
- Input Voltage of Halo (If Included): 12V DC

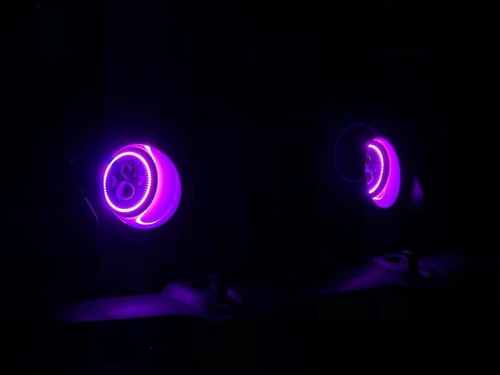

- Optional: ORACLE Halo Rings Pre-Installed
- Wide Beam Pattern with Sharp Cut-Off Line
- High Beam Wattage: 40W Normal/48W Max
- Low Beam Wattage: 30W Normal/36W Max
- Heavy Duty Solid State Electronics
- Input Voltage of Light: 12-24V DC
- Hard-coated Polycarbonate Lens
- Easy Plug & Play Installation
- DOT and SAE Certified
- 2 Year Warranty
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2021 | Jeep | Gladiator | 80th Anniversary |
| 2020,2022 | Jeep | Gladiator | Altitude |
| 2023 | Jeep | Gladiator | Freedom |
| 2021-2023 | Jeep | Gladiator | High Altitude |
| 2024-2025 | Jeep | Gladiator | High Tide |
| 2024 | Jeep | Gladiator | Jeep Beach |
| 2020 | Jeep | Gladiator | Launch Edition |
| 2020-2025 | Jeep | Gladiator | Mojave |
| 2024-2025 | Jeep | Gladiator | Mojave X |
| 2024-2025 | Jeep | Gladiator | NightHawk |
| 2020-2023 | Jeep | Gladiator | Overland |
| 2020-2025 | Jeep | Gladiator | Rubicon |
| 2024-2025 | Jeep | Gladiator | Rubicon X |
| 2020-2025 | Jeep | Gladiator | Sport |
| 2020-2025 | Jeep | Gladiator | Sport S |
| 2021-2025 | Jeep | Gladiator | Texas Trail |
| 2021-2025 | Jeep | Gladiator | Willys |
| 2021-2023 | Jeep | Gladiator | Willys Sport |
| 2021 | Jeep | Wrangler | 80th Anniversary |
| 2021,2023 | Jeep | Wrangler | Freedom |
| 2021 | Jeep | Wrangler | Islander |
| 2018-2025 | Jeep | Wrangler | Rubicon |
| 2024-2025 | Jeep | Wrangler | Rubicon X |
| 2024 | Jeep | Wrangler | Sahara 4xe |
| 2018-2025 | Jeep | Wrangler | Sport |
| 2018-2025 | Jeep | Wrangler | Sport S |
| 2021 | Jeep | Wrangler | Unlimited 80th Anniversary |
| 2021 | Jeep | Wrangler | Unlimited Freedom |
| 2021-2022 | Jeep | Wrangler | Unlimited High Altitude |
| 2021-2022 | Jeep | Wrangler | Unlimited High Altitude 4xe |
| 2022 | Jeep | Wrangler | Unlimited High Tide |
| 2021 | Jeep | Wrangler | Unlimited Islander |
| 2018-2019 | Jeep | Wrangler | Unlimited Moab |
| 2018-2022 | Jeep | Wrangler | Unlimited Rubicon |
| 2021-2022 | Jeep | Wrangler | Unlimited Rubicon 392 |
| 2021-2022 | Jeep | Wrangler | Unlimited Rubicon 4xe |
| 2018-2022 | Jeep | Wrangler | Unlimited Sahara |
| 2021-2022 | Jeep | Wrangler | Unlimited Sahara 4xe |
| 2021-2022 | Jeep | Wrangler | Unlimited Sahara Altitude |
| 2018-2022 | Jeep | Wrangler | Unlimited Sport |
| 2021-2022 | Jeep | Wrangler | Unlimited Sport Altitude |
| 2018-2022 | Jeep | Wrangler | Unlimited Sport S |
| 2021-2022 | Jeep | Wrangler | Unlimited Willys |
| 2021-2022 | Jeep | Wrangler | Unlimited Willys Sport |
| 2021-2025 | Jeep | Wrangler | Willys |
| 2021-2024 | Jeep | Wrangler | Willys Sport |
