Description

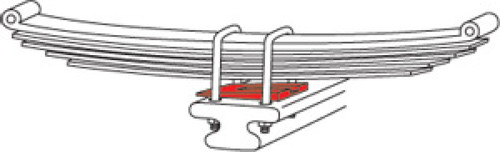

These heavy-duty axle caster shims can also be used to adjust pinion angle on leaf spring suspension type vehicles with 3" - 3.5" - 4" wide leaf springs. Each shim features a double breakaway portion to fit the spring vehicle width as needed. The shim range features 0.50˚ taper, and this specific part number provides 1.00˚. Six shims per box.
Installation Instructions
Installation Instructions
- Heavy-Duty alloy & Double breakaway for more versatility
- Updated design is easy to use with the popular Hino axle
- Double breakaway for more versitility 3"-3.5"-4"
- Fits vehicles with 3"-3.5"-4" wide leaf springs
- Changes caster plus or minus 1.0 degrees
- Adjust both pinion & caster angle
- Heavy-duty zinc alloy
- Degree/Taper: 1.00˚
- Box of (x6) Shims
